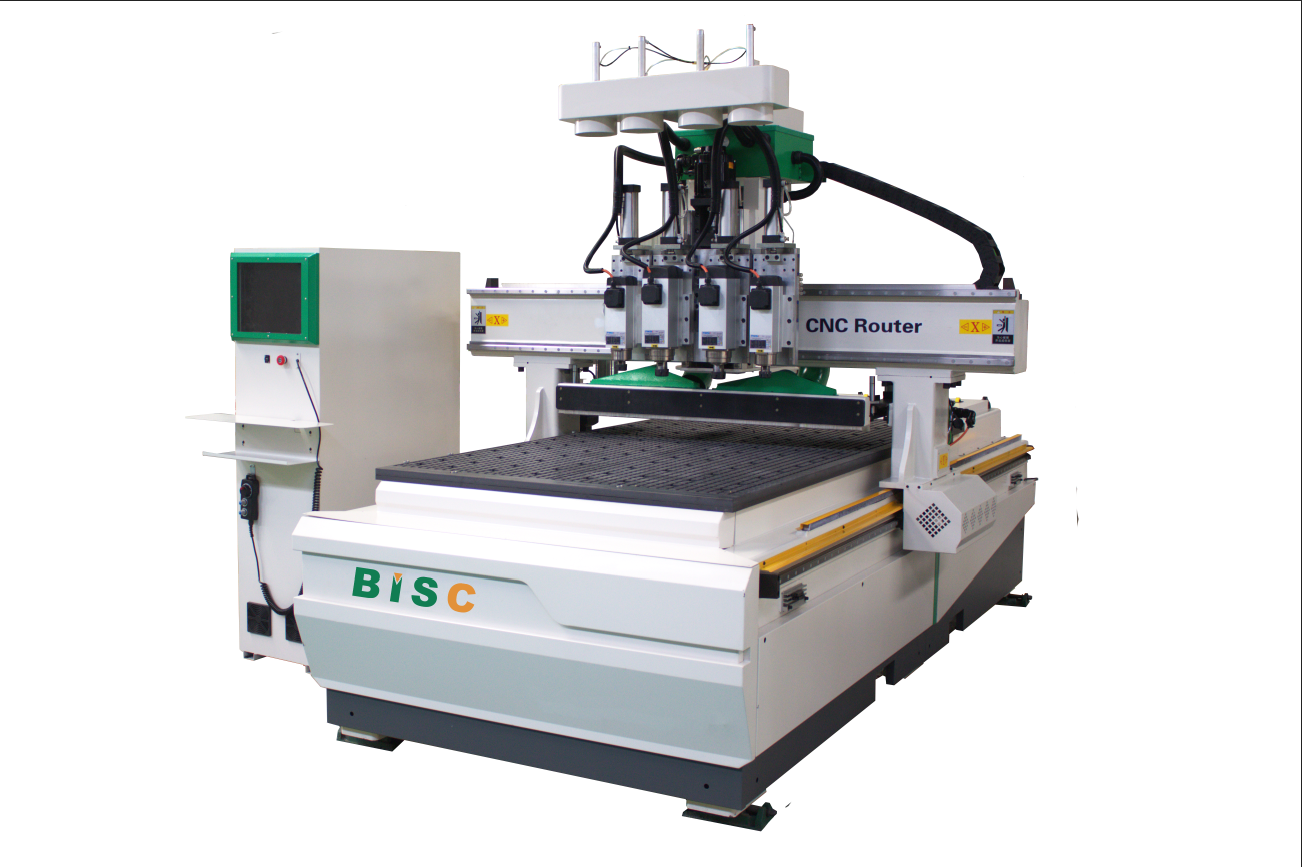

wood 3D carving machine
wood 3D carving machine
Product Description:

Features:

1.Standard CNC wood cutting machining center, with high efficiency,reinforce lathe structure ,sturdy and durable.

2.Imported spindle and drill from Italy,screw rack from German,linear rail from Taiwan,with stable performance.

3.Adopt reasonable structured double-deck multi-holes table,with strong adsorption.

4.Compared with traditional cutting,it can save a lot of labor cost.it only need one person to operate, even one person can operate several devices, zero error, simple operation and high efficiency.

5.With automatic loading .This machine cut wooden boards optimally, drill vertical holes in once time.Uninterrupted processing achieve output maximum efficiency.

Applications:

Furniture industries: panel furniture, office furniture, customized furniture, solid wood furniture

Wooden product industries:Voice box,game cabinets,computer tables,sewing machine tables,music instruments.

Boards processing:PCB,inner bodies of high speed railway,tracks of bowling ball,compact grade laminates,ABS,PP,PE and other carbon mixed compound.

Decoration industries:Acrylic,PMMA,PVC,MDF,plastics.

Technical Parameters

Series

M6/M6-F

Range of travel

1300x2500x260mm

Max working size

1220x2440mm

Traveling speed

65m/min

Max working speed

20m/min

Type of transmission

XY/Z XY rack/Z ball screw

Parameters of spindle

6KW/18000rpm*2

Parameters of drill

5+4 Vertical drill

Structure of table

Double-deck multihole table

Drive system

Servo Motor

Working voltage

AC380/3PH/50Hz

Total weight

2600KG/4200KG

Packaging & Shipping

1. Machine packaged in fumigation-free wooden case.

2. Inner package: Stretchy film and plastic film for humidity and dustproof.
We can package according to your requests.

3.  Delivery:Within 7 days after the deposit.

Our Services

1.We test equipment at least 3-5 days to ensure our users to receive perfect machines.

2. We guarantee that every part of machine is totally new and clean before delivery.

3. We supply 24 hours after sale service from our Service Department.

4.We can send technical person to help customer install machine on your site.

5.We provide many online service such as Skype, QQ, WhatsApp, Wechat, Email, and Video call

We provide CD Video to show how to operate the cnc router.
